Detachable House
Detachable container house, also known as quick-assembled hosue or assembled house, is a type of container mobile house. It consists of a frame and wall panels, which are fixed and connected by screws without welding. This design makes the detachable container house very convenient and quick in transportation and installation, and is especially suitable for units that frequently change construction sites.
- Overview
- Recommended Products
Product Overview: Detachable Container House
Detachable container house, also known as quick-assembled hosue or assembled house, is a type of container mobile house. It consists of a frame and wall panels, which are fixed and connected by screws without welding. This design makes the detachable container house very convenient and quick in transportation and installation, and is especially suitable for units that frequently change construction sites.
Specifications and Parameters:

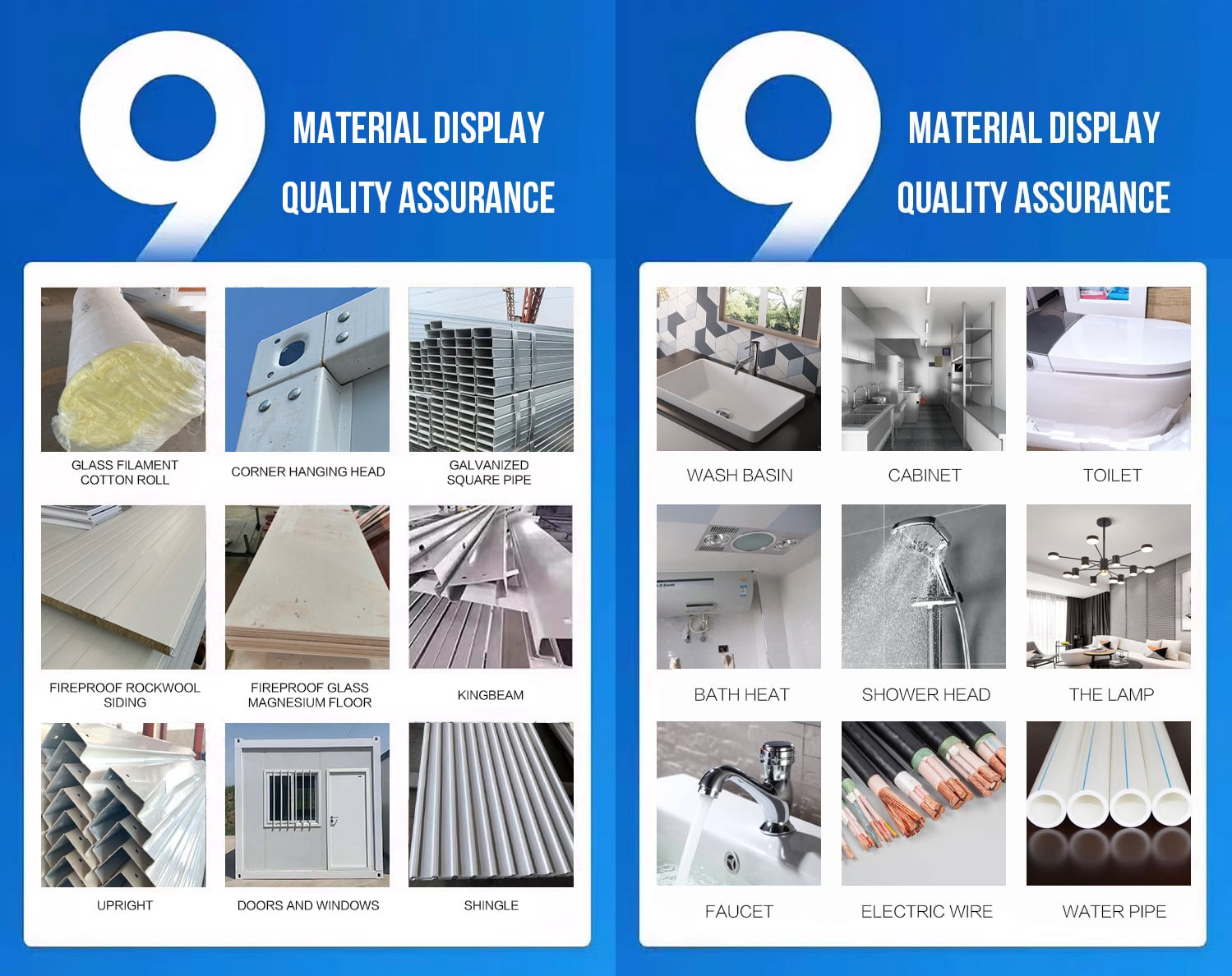

| Structural | high-quality hot-rolled Q235 galvanized steel |
| Roof | steel beam, rock wool sandwich panel, corrugated color steel ceiling |
| Wall | color-coated galvanized steel plate, foam, rock wool |
| Door and window | plastic steel, aluminum alloy or customization |
| Color | white, wood grain or customization |
| Size | 5850*2990*2880mm or customization |

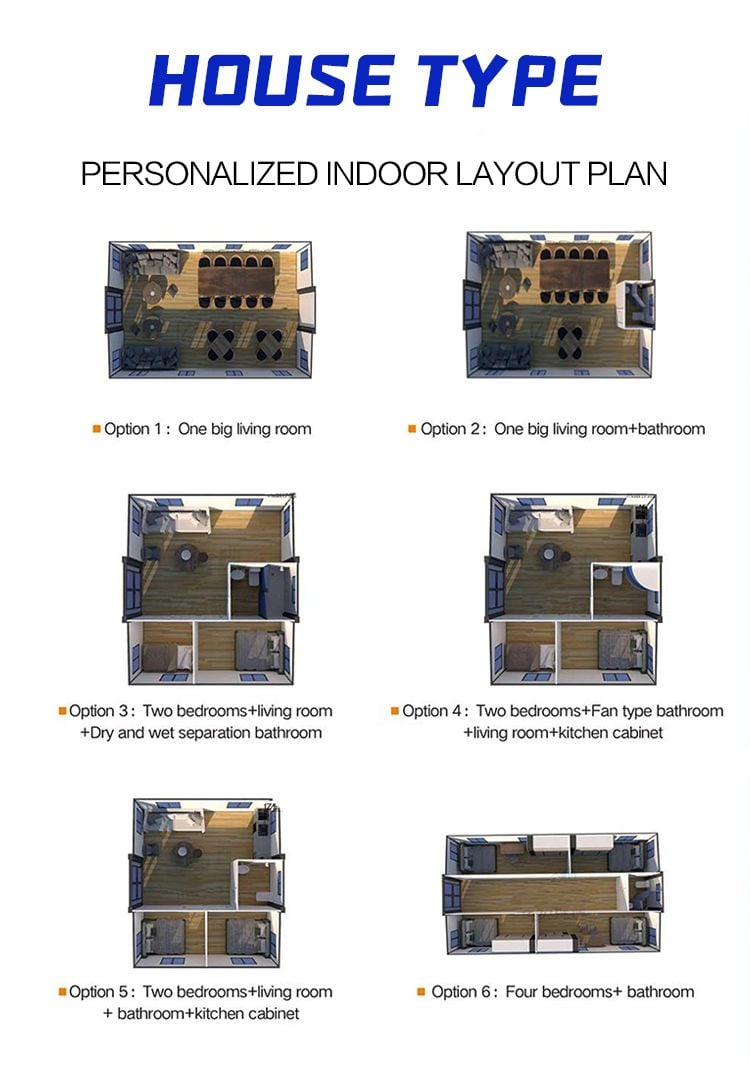

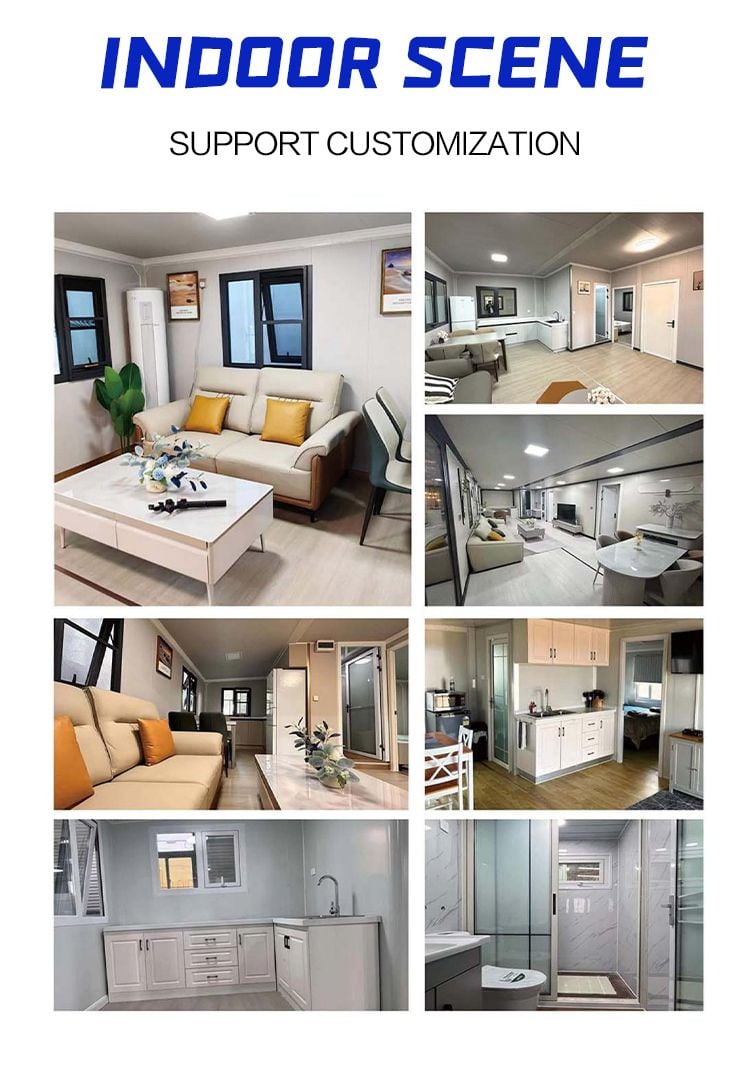

| Internal design | free design |
| Standard | strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards |
| Product life | more than 20 years |
| Transportation | sea transportation, 16-17 sets/1*40hq |
Product Features:
1. Space saving
It can be kept compact when not in use, reducing the ground space occupied. When needed, the usable area can be quickly increased to improve space utilization.
2. Flexible and light
It has a light structure, is easy and quick to disassemble and assemble, can be reused many times, has a flexible design, and can be customized according to different scenarios and needs.
3. Economical and practical
It has a lower cost than traditional buildings. At the same time, its long service life and low maintenance cost make it an economical and practical building solution.
4. Safe and reliable
It is built with prefabricated modules and has a safe and reliable structure. During the design and production process, it will undergo strict quality control and safety testing to ensure that it can withstand various environmental conditions and pressures during use.
5. Stable and durable
The overall steel frame structure has a long service life, good wind and earthquake resistance, good sound insulation and heat insulation, high stability, strong load-bearing capacity, and can be stacked in multiple units.
Application Scenarios:

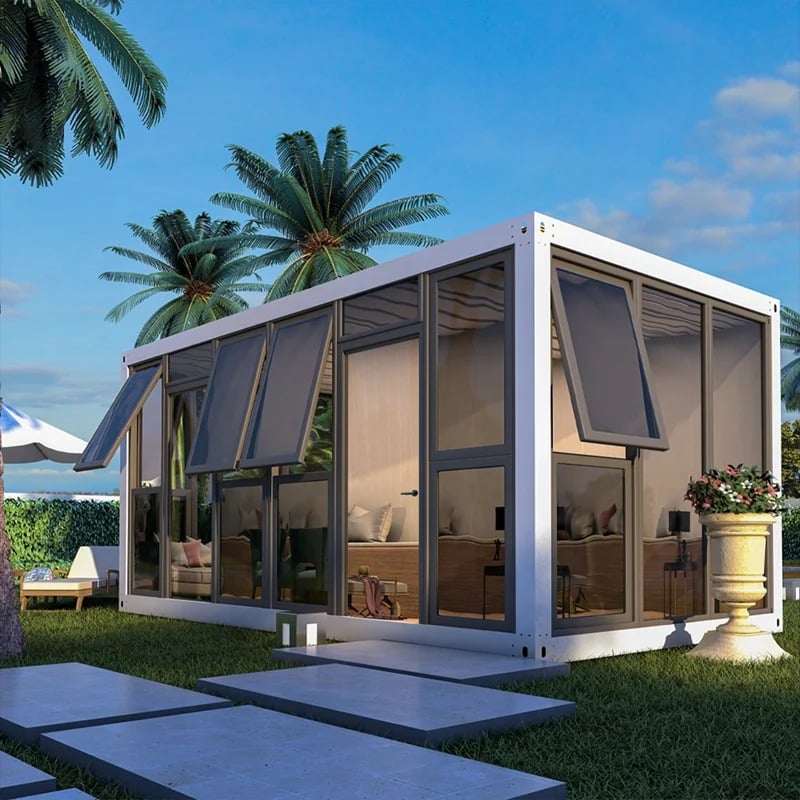

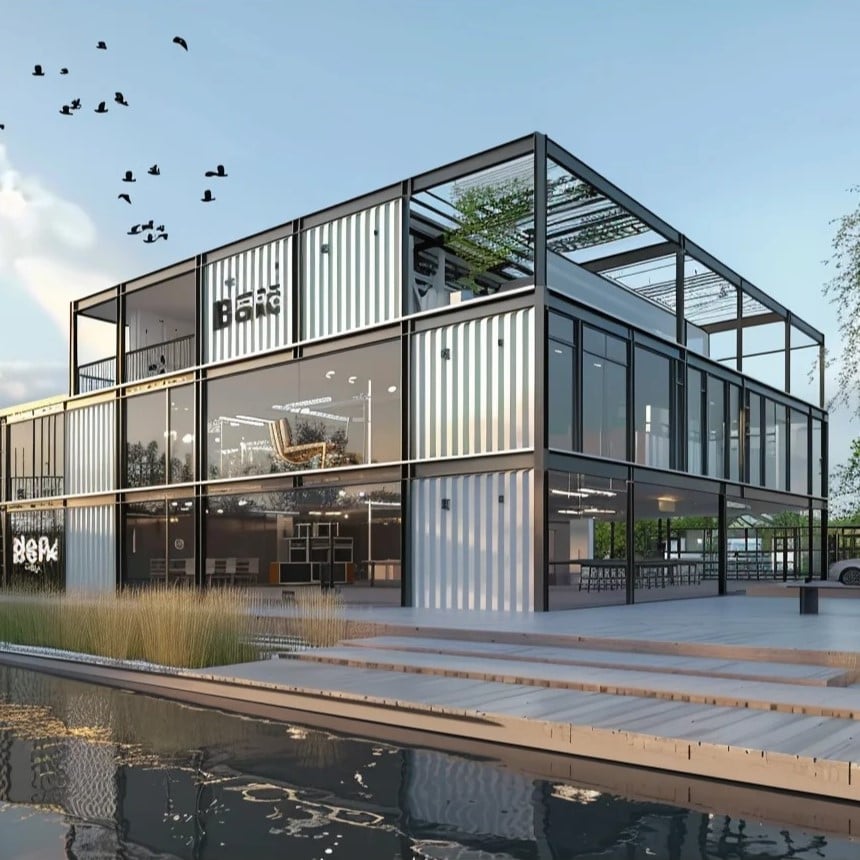

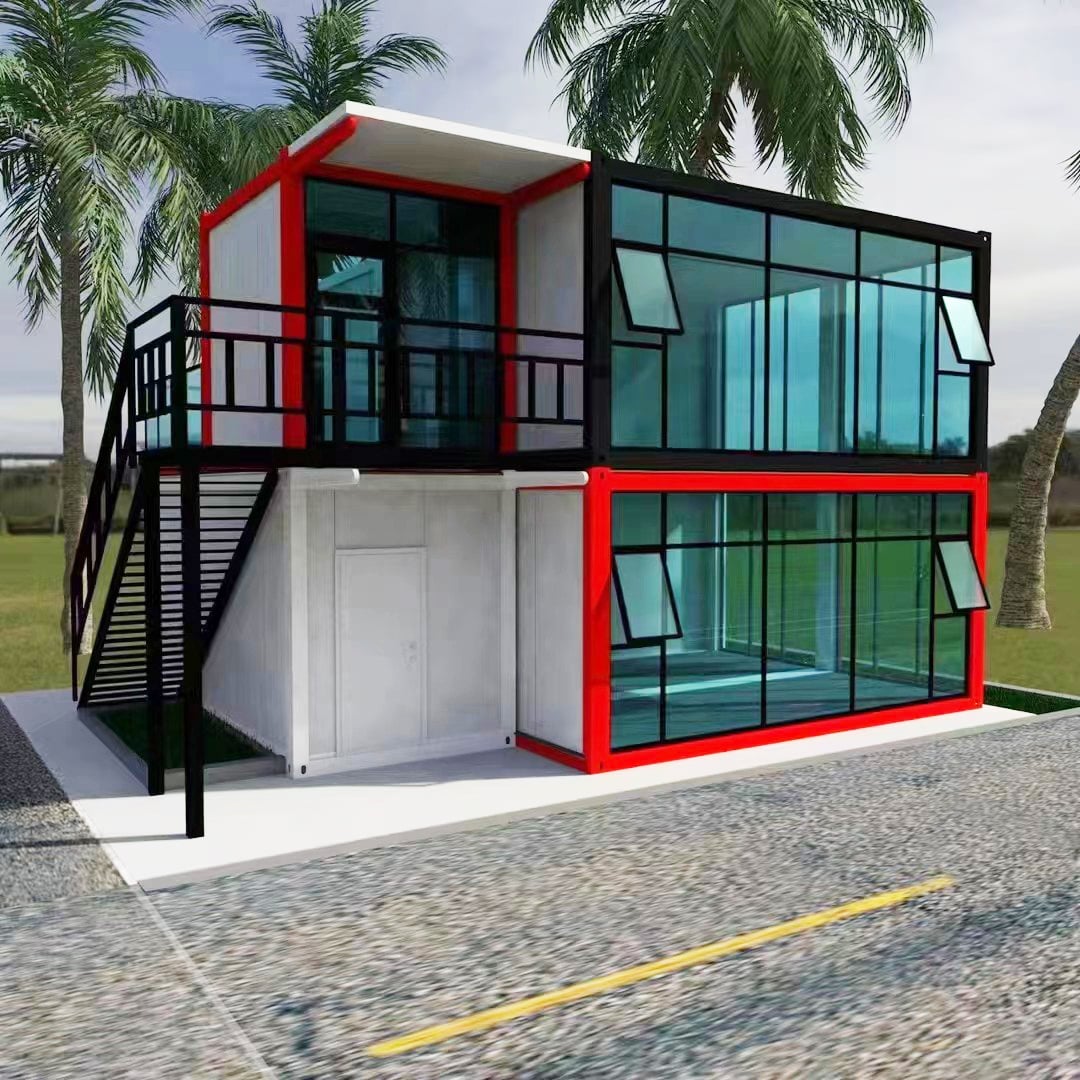

Residence/Office/Hotel/Shop/School/Hospital/Camping/etc
| Detachable Container | ||
| Size | 5850*2990*2880mm | |
| Weight | 1200kg | |
| 2.3mm Frame | Top frame160mm | Corner fitting 3.0mm*4pcs 80C steel 1.0mm*5 pcs Square tube:40*60*1.0mm*1pc,30*30*1.0mm*2 pcs Upper cross beam:L=5580mm 2.3mm,Last beam: L=2670mm 2.3mm |
| Bottom frame 160mm | Corner fitting 3.0mm*4pcs Square tube:100*50*1.0mm*9pcs,40*40*1.0mm*1pc Bottom crossbeam:L=5580mm,2.3mm,bottomsecond beam:L=2670mm,2.3mm |
|
|
160*160mm Column |
160*1602510mm,2.3mm*4pcs,hexagon socket bolt(12*30)*4Opcs Strength/Reinforced rib 2.5mm*2pcs,L-shape connector*8 pcs |
|
| Color steel roof capping |
0.4mm thick capped corrugated single tile,special waterproof method | |
| PE film,75mm glass woolinsulation blanket | ||
| Suspended Ceiling System |
Integrated ceiling tile | 831 tile type,thick 0.3mm*7pcs |
| Colorsteelangle aluminum |
Fixceiling Tile(same materialas ceiling tile) | |
| Ground System | Cement board | Cement sand board thick18mm 1164*2820mm*5pcs |
| Interior Decorative Line Door/Gate |
Concave line | Colored steel finished column with internal corner 2510mm84 pcS |
| Skirting line | White PVC skirting*3pcs | |
| Window | Steel door | Steel door Door thick 0.4mm,frame0.6mm,970*1970mm (stainless steel pressure handle AB lock) |
| Wall Board | Plastic-steel window | Singleglassdouble push,0.3mm,930*1130mm with ant theft mesh screen window*2 pcs |
| Auxiliary Materia | 95Otype | 950type-50mm thick-03 iron sheet-50kg-double-side orange peel pattern |
| / | Screw,connecting plate,neutral silicone weather resistant sealant | |
| Electric Distribution |
High end | Six channel PVC distribution box *1 32A leakage protector*1 Industrial socket"1 LED ceiling strip light*2 3-hole socket*1,5-pole socket ·2 Switch*1 Circuit breaker"1 Main line wire 6 Air conditioner wire 4m² Socket wire 2.5m light wire 1.0m² |
Frequently Asked Questions (FAQ):
Q: What are the advantages of your factory?
A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.
Q: What is your supply capacity?
A: 50 sets of container houses per day and 1,500 sets per month.

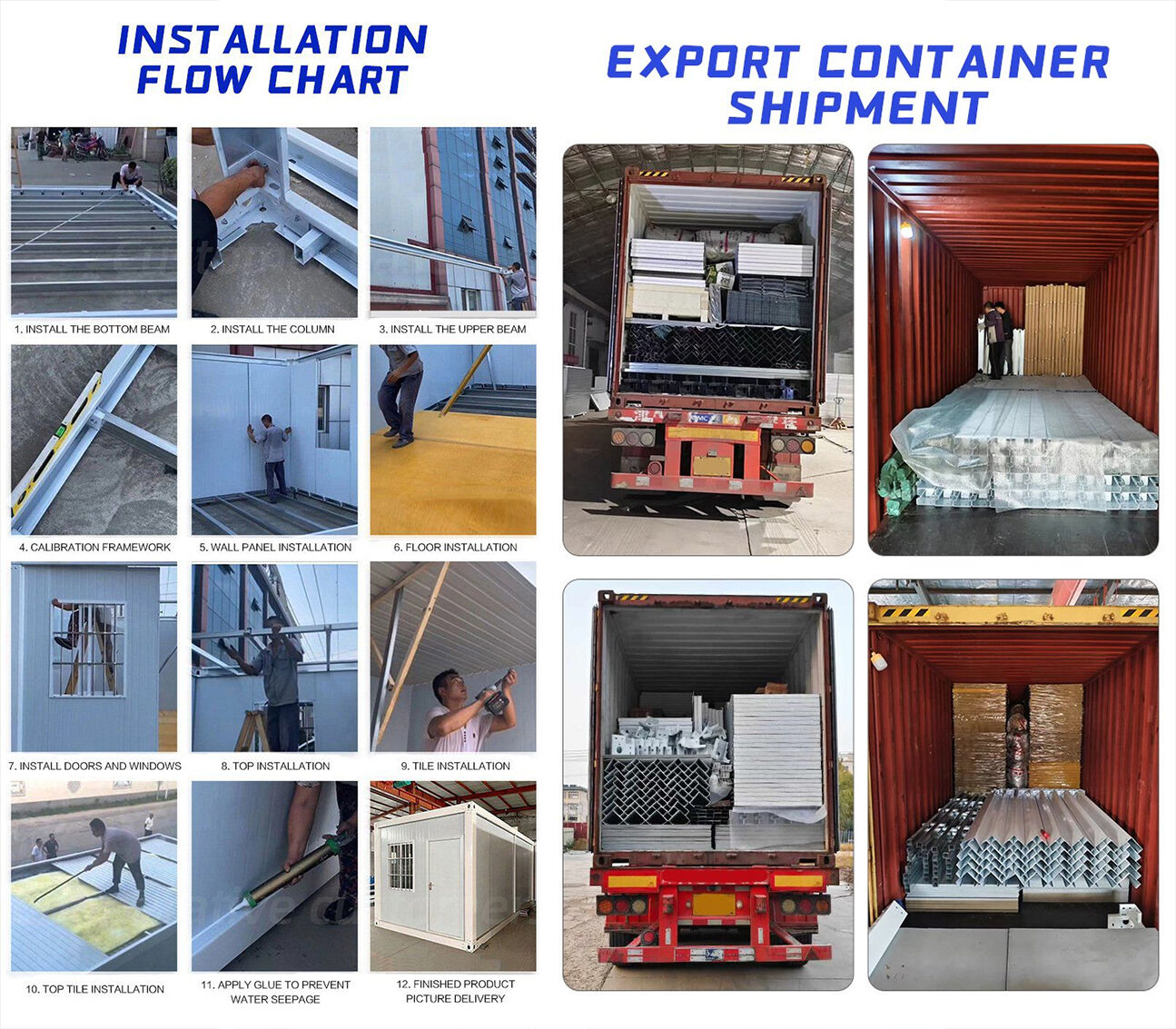

Q: How to install?
A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.
Q: How long is your delivery time?
A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.
Q: How many coutries you already exported?
A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.
