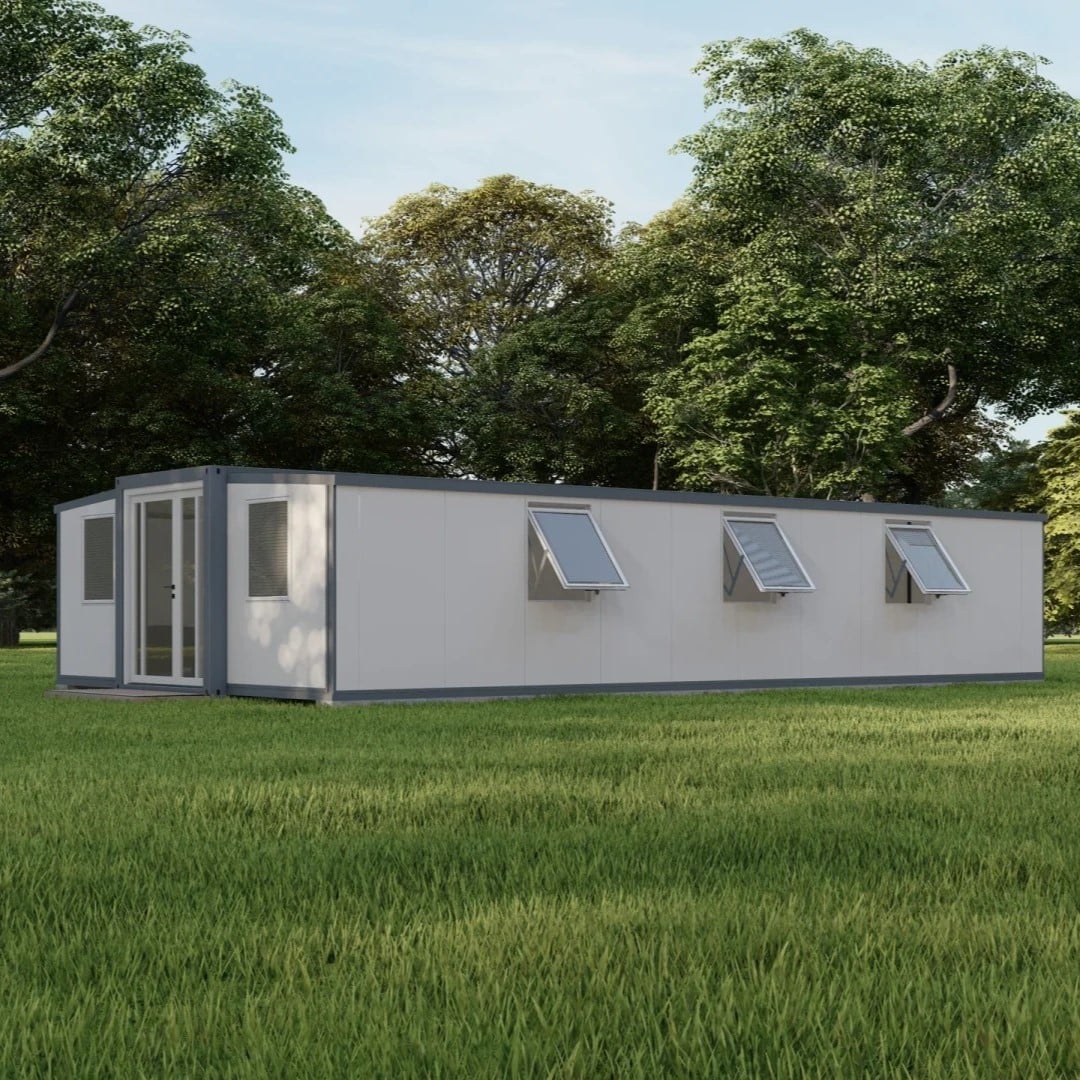

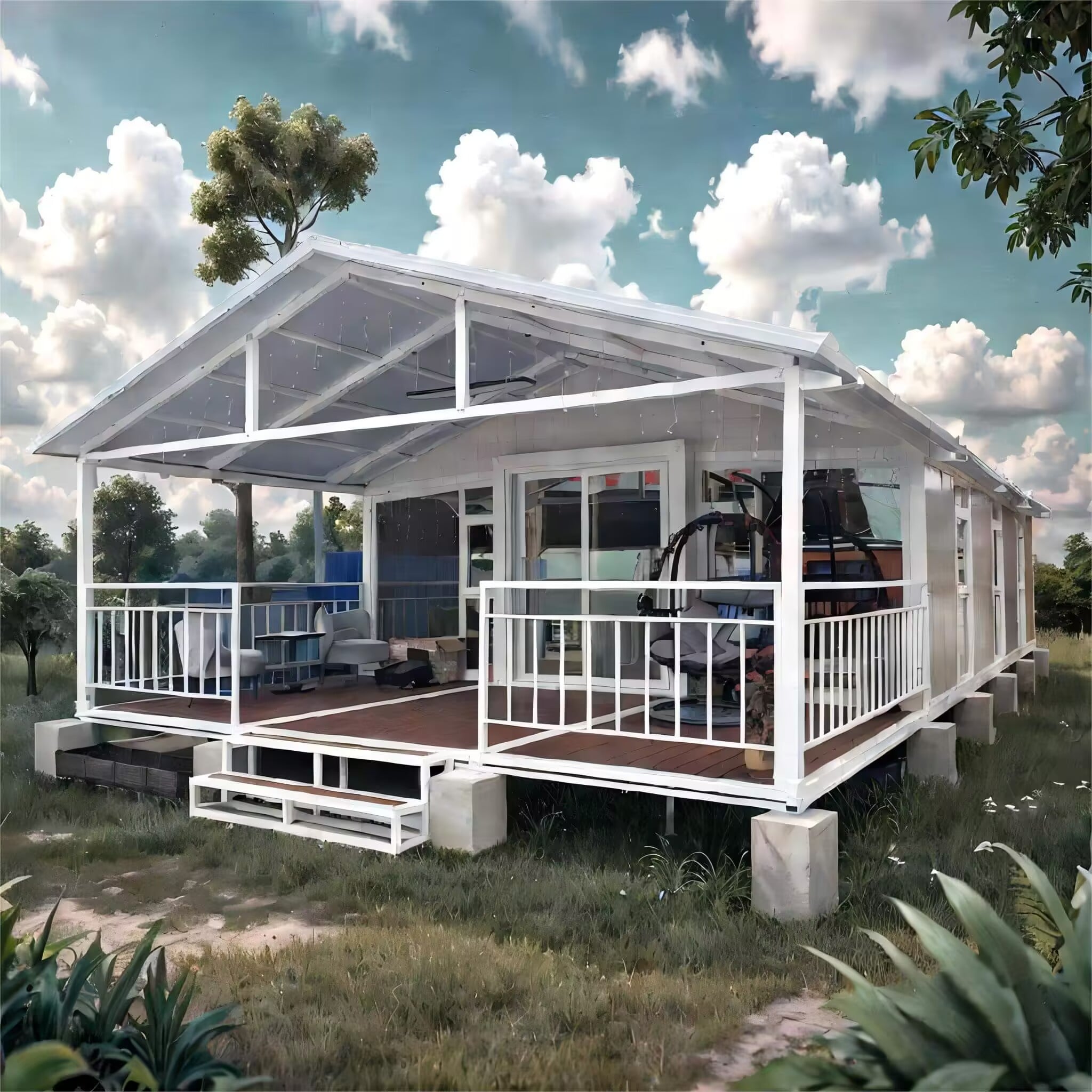

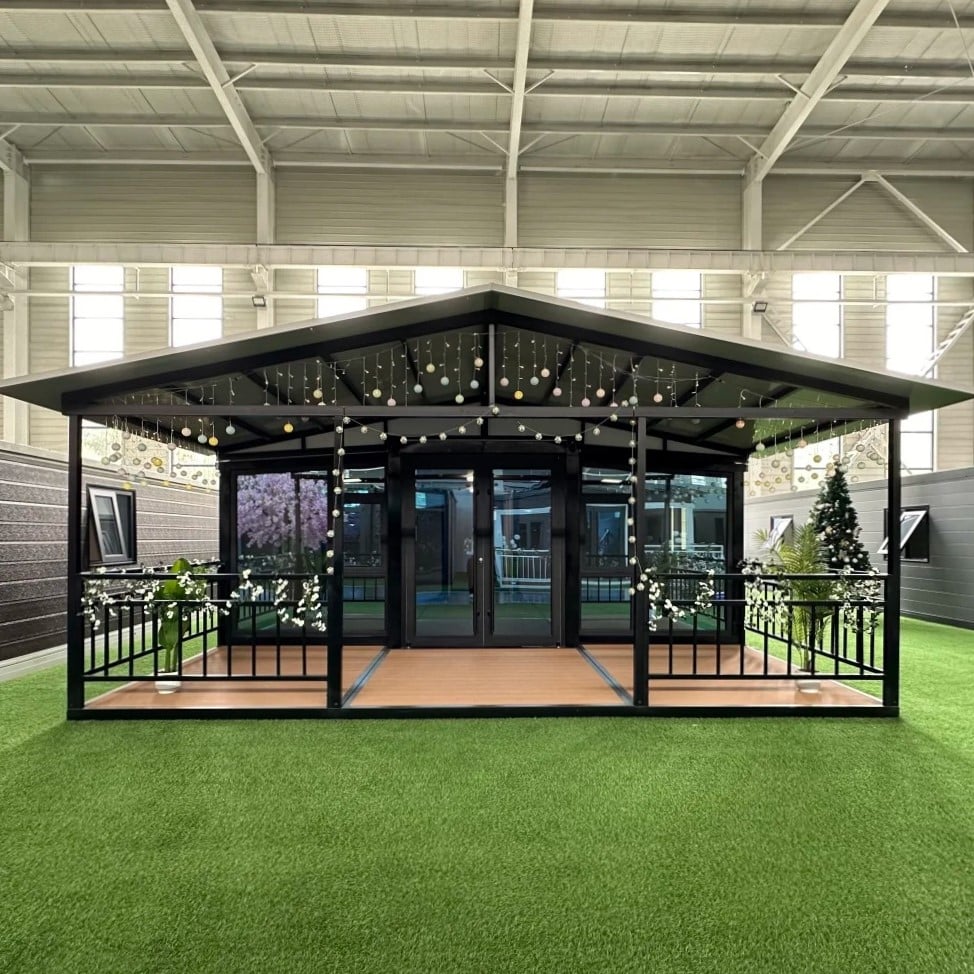

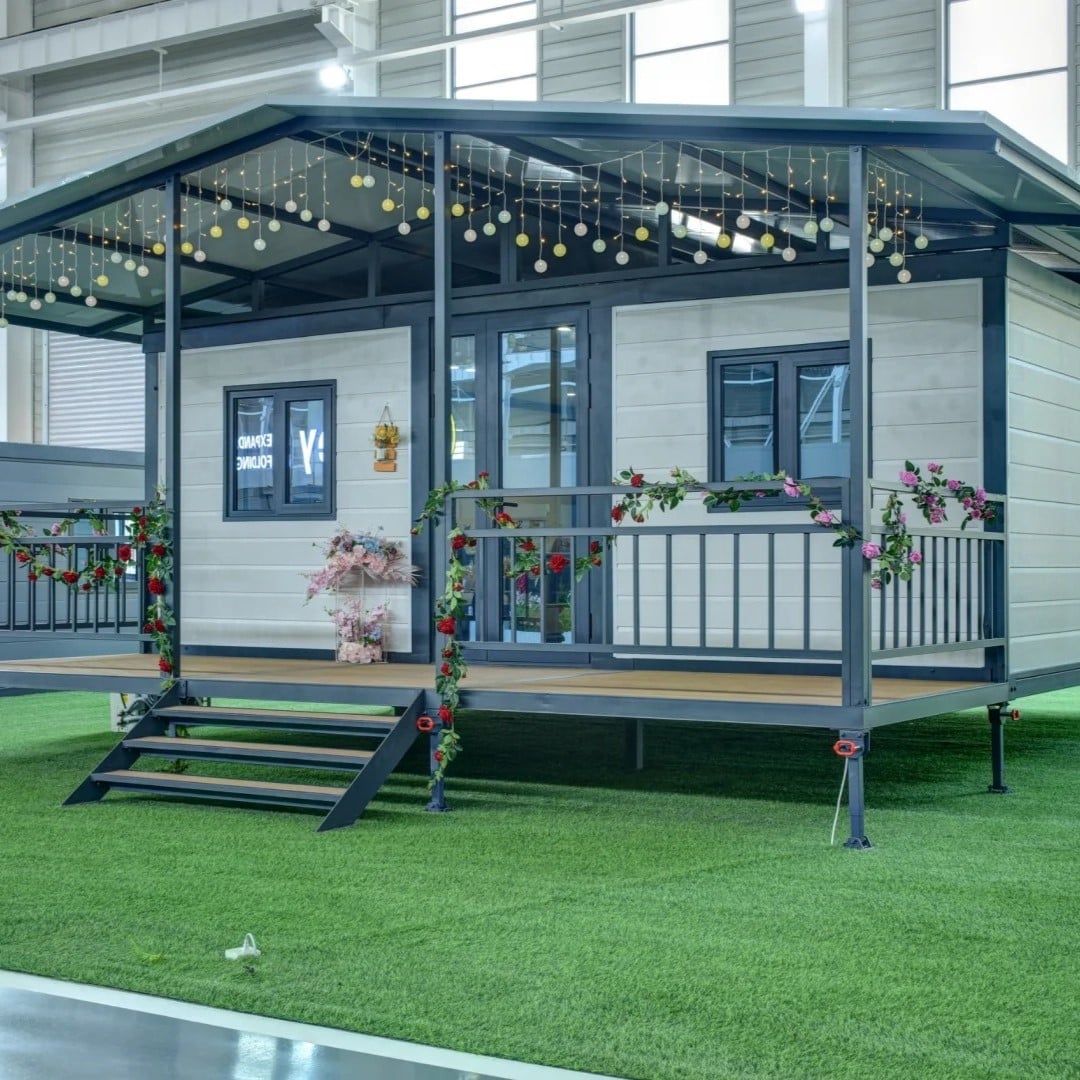

Double Wing Expandable House
The double-wing expanable container house house is a special type of mobile house. Its design feature is that it can increase the internal usable space by expanding on both sides (i.e. "double wings"), and it has the characteristics of flexibility, space saving, economy and practicality. This design allows the container house to be compact and portable while being able to flexibly expand the space according to actual needs, thereby meeting the use needs in different scenarios.
- Overview
- Recommended Products
Product Overview: Double Wing Expandable House
The double-wing expanable container house house is a special type of mobile house. Its design feature is that it can increase the internal usable space by expanding on both sides (i.e. "double wings"), and it has the characteristics of flexibility, space saving, economy and practicality.
This design allows the container house to be compact and portable while being able to flexibly expand the space according to actual needs, thereby meeting the use needs in different scenarios.
Specifications and Parameters:
| Structural | High-quality hot-rolled Q235 galvanized steel |
| Roof | Steel beam, rock wool sandwich panel, corrugated color steel ceiling |
| Wall | Clor-coated galvanized steel plate, foam, rock wool |
| Door and window | Plastic steel, aluminum alloy or customization |
| Color | White, wood grain or customization |
| Size | 5850*6300*2480mm(20Ft), 11700*6300*2480mm(40Ft) or customization |

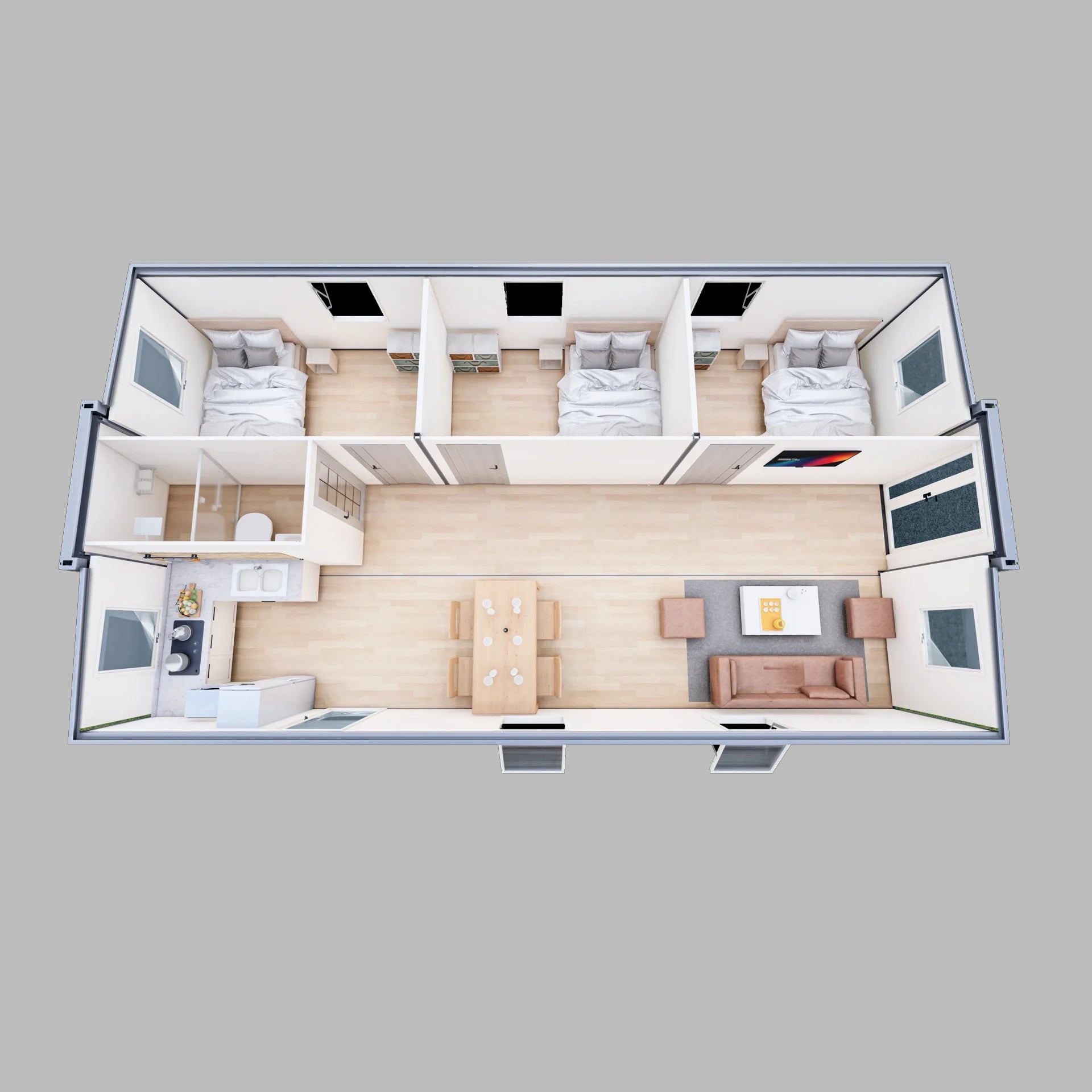

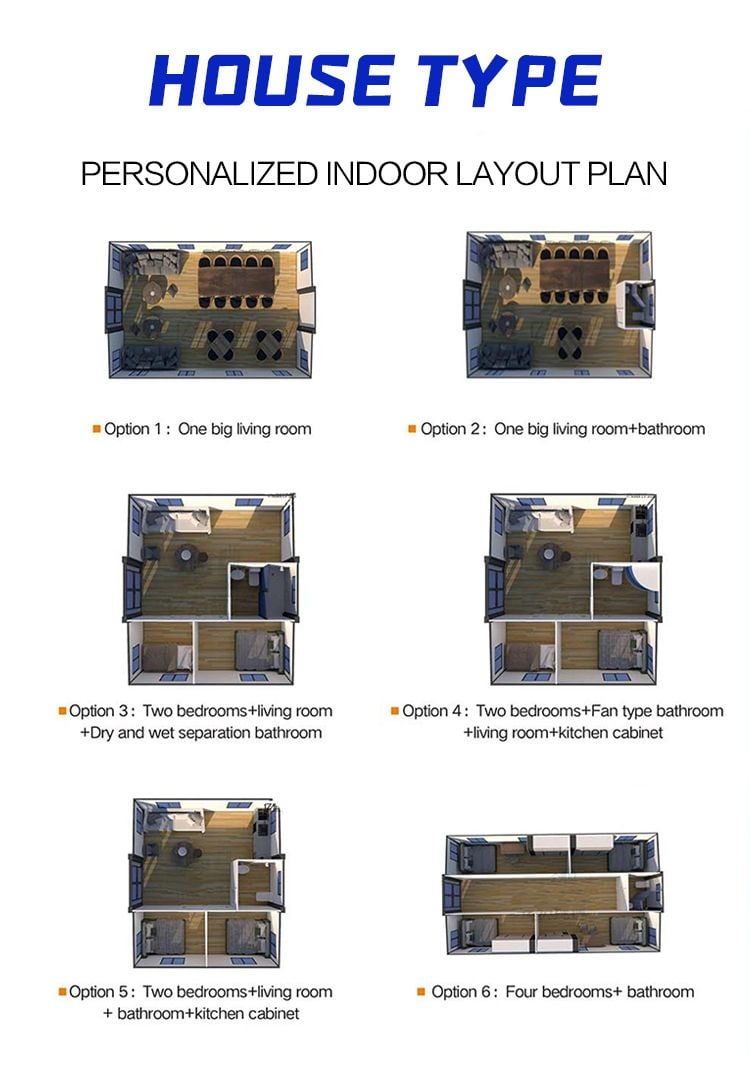

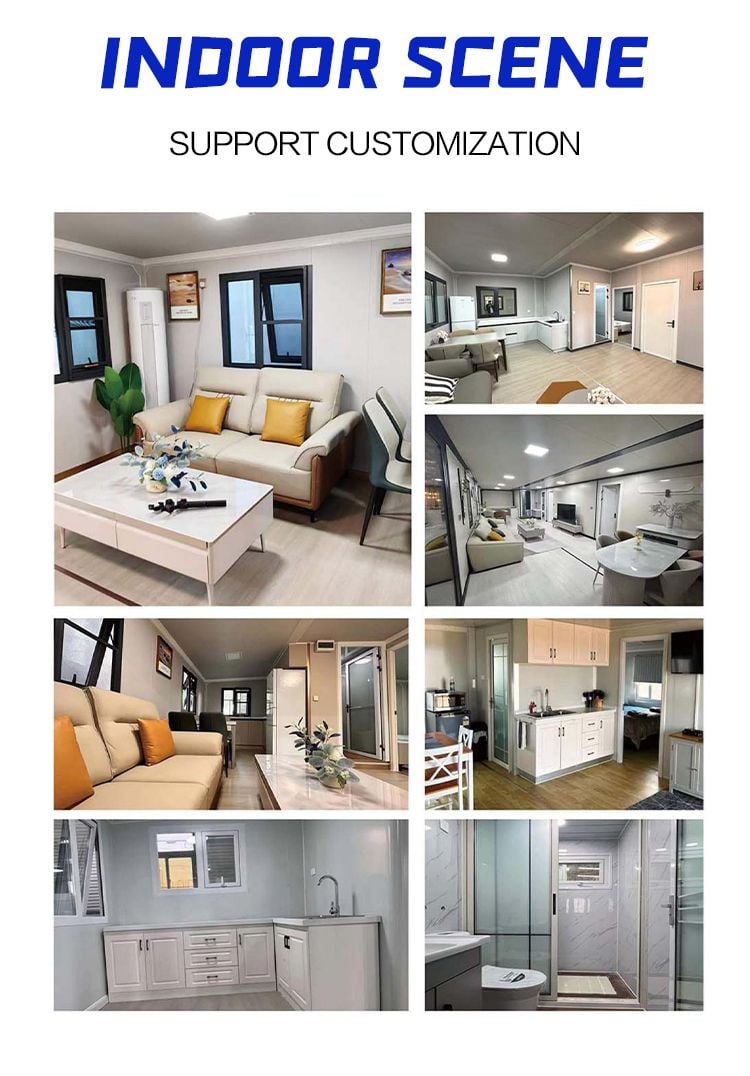

| Internal design | Free design |
| Standard | Strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards |
| Product life | More than 20 years |
| Transportation | Sea transportation, 2-6 sets/1*40hq |
Product Features:
1. Space saving
It can remain compact when not in use, reducing the floor space occupied, and can quickly increase the usable area when needed to improve space utilization.
2. Flexible and changeable
The design is flexible and can be customized according to different scenarios and needs.
3. Economical and practical
Compared with traditional buildings, it has a lower cost. At the same time, its long service life and low maintenance cost make it an economical and practical building solution.
4. Safe and reliable
It is built with prefabricated modules, with a safe and reliable structure, strong wind and earthquake resistance, and good thermal insulation effect. During the design and production process, it will undergo strict quality control and safety testing to ensure that it can withstand various environmental conditions and pressures during use.
Application Scenarios:
Residence/Office/Hotel/Shop/School/Hospital/Camping/etc
| 20foot Expandable Container House | ||
| Size | External size | L5850*W6300*H2480mm |
| nternal size | 5510*6200*2240mm | |
| Folding size | 5850*2200*2480mm | |
| Weight | 2400kg | |

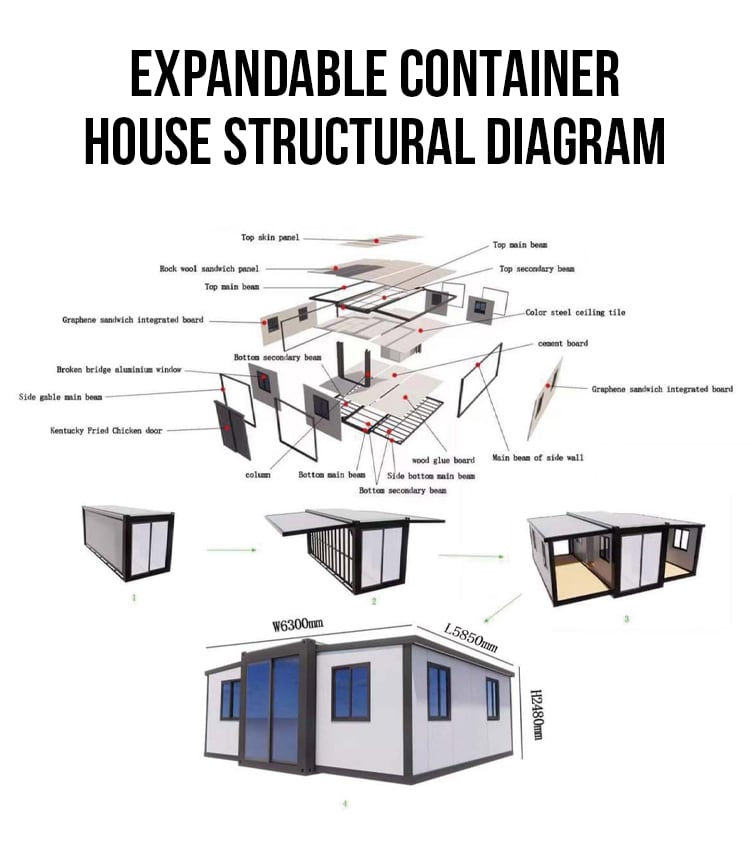

| Frame Structure | Middle top girder | 80*120*T2.5mm |
| Mid-sole girder | 160mm profile*T2.2mm | |
| Hanging head/corner fitting*8pcs | 160*210*160*T3mm | |
| Main top purlin | 30*30*T1.0mm | |
| Main bottom purlin | 50*100*T1.Omm | |
| Side top side frame | 50*50*t1.5mm U-iron stee | |
| Side bottom purlin | 40*60*t1.5mm | |
| Side waterproof guard fold | T1.5mm | |
| Folding hinge | 3mm weld hinge | |
| Overallframe anti-corrosion coating | Electrostatic spraying/straight white plastic powder | |
| Top Roof | External top plate | 50EPS board |
| Internal ceiling | Color steel 831 ceiling tile | |
| Wall | Main body | 50EPS board |
| Side top board | 50EPS board | |
| Internal partition | 50EPS board | |
| Floor | Intermediate floor | 18mm cement fiber board +1.6mm wood grain rubber sheet |
| Side floor | 18mm wood board +1.6mm wood grain rubber sheet |
|
| Gap Junction | Aluminum sheet | 120mm width |

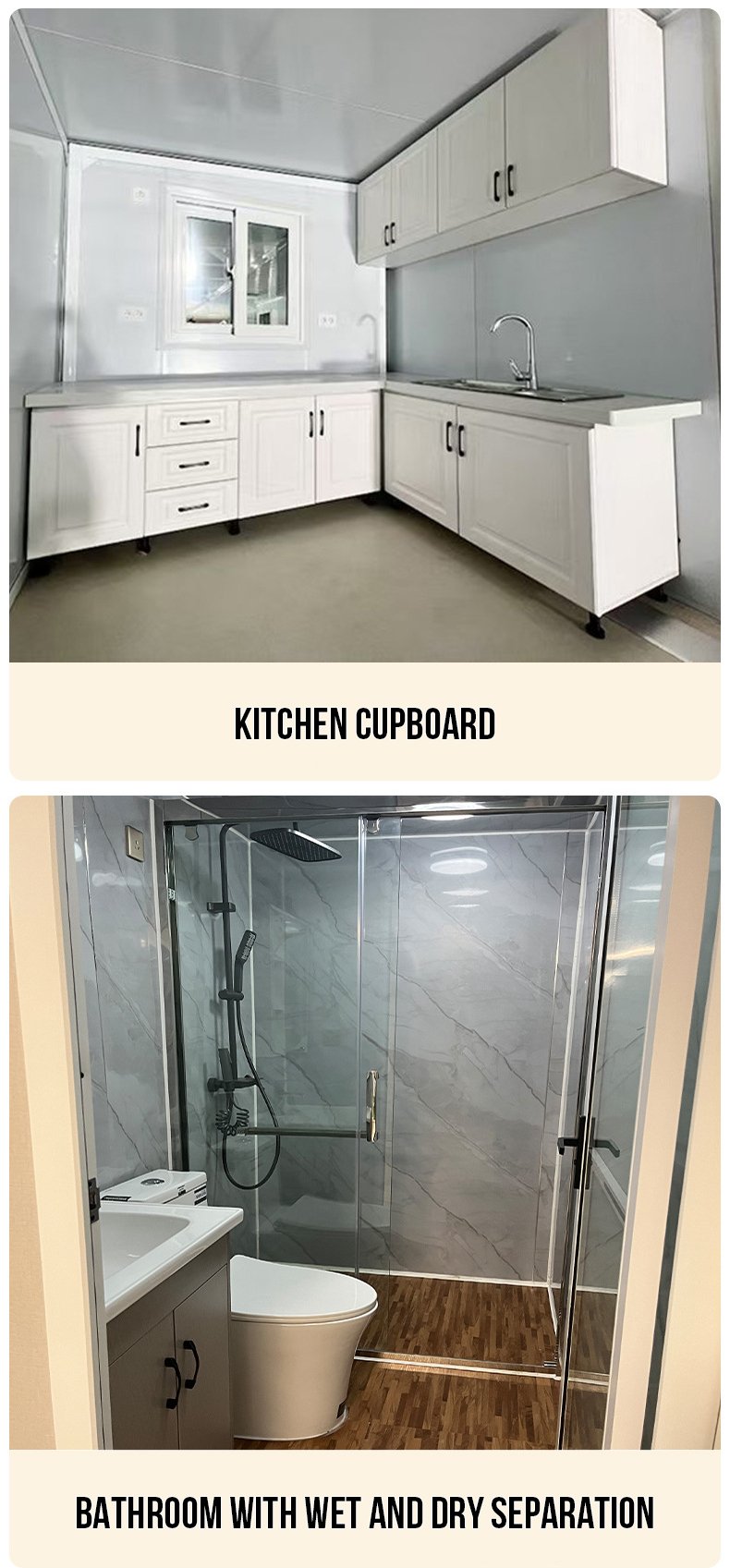

| Washroom | nclude close stool toilet *1, ceramic cabinet wash basin *l, hand shower nozzel *1 set | |
| Electrical Configuration |

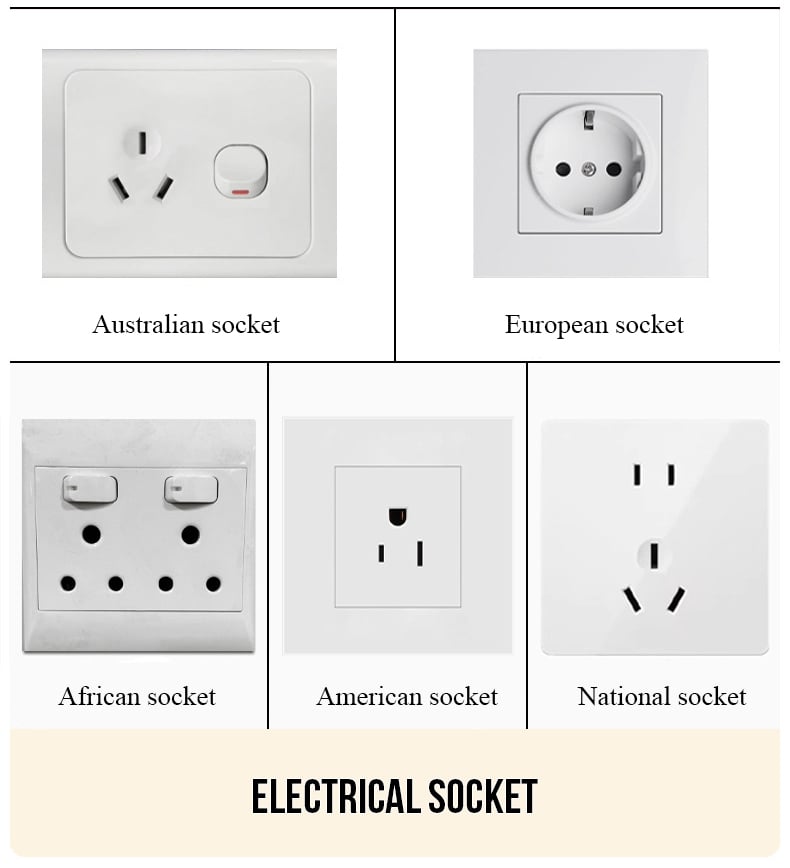

LED ceiling round lamp *4pcs, Single-open socket *5pcs, Three-hole socket *3pcs, Five-hole socket *5pcs, Air-conditioning socket *3pcs, 32A leakage protector *lpc, 2P circuit breaker *2pcs, One set of distribution box and one set of industrial socket |
|

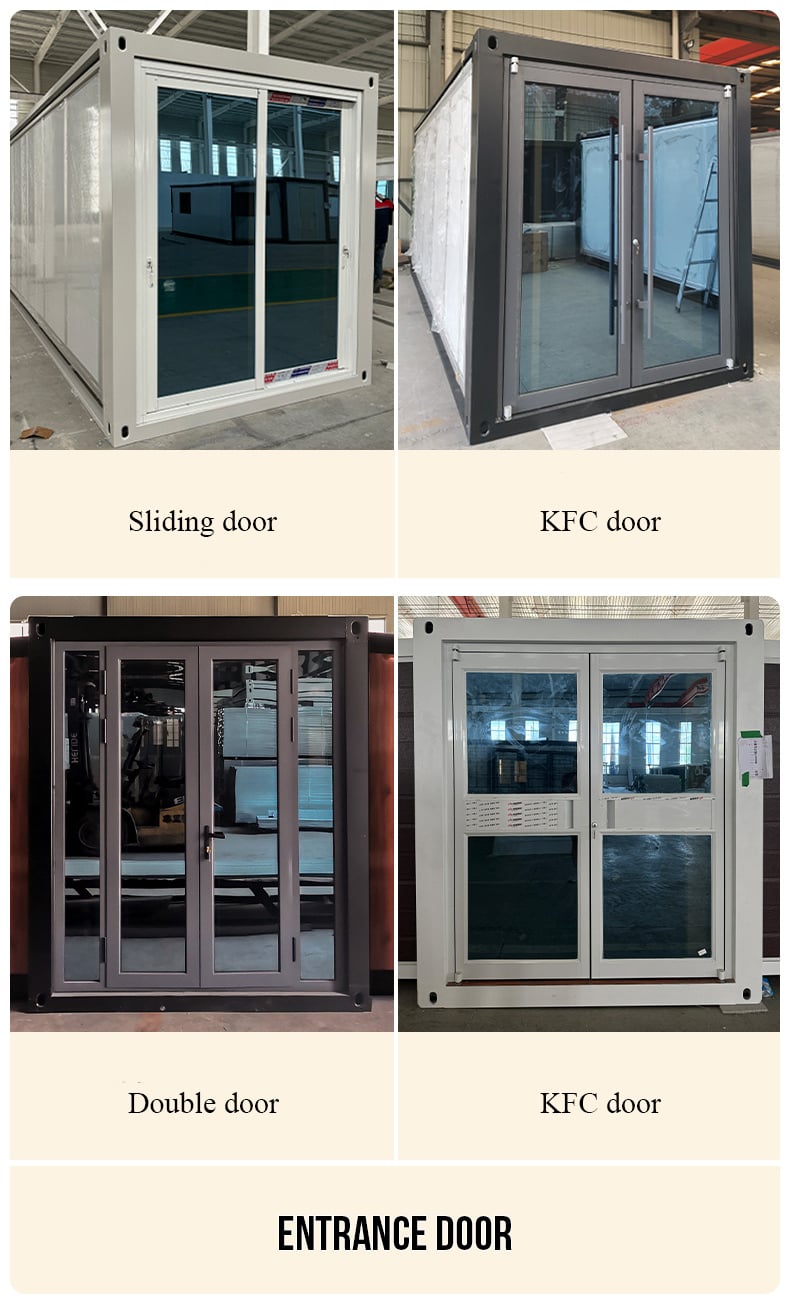

| Gate&Door | 1780*2160mm KFC double glass entrance gate *lpc | |

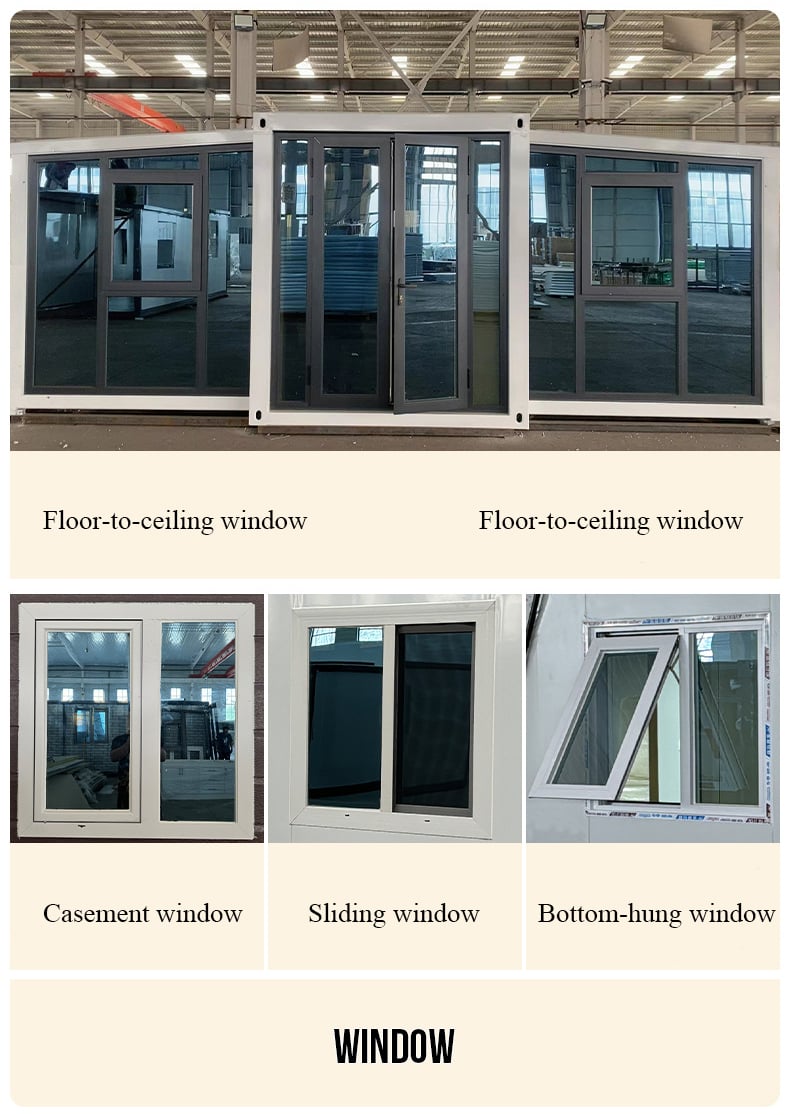

| Window |
930*930mm aluminum alloy sliding window *8pcs 500*925mm aluminum alloy sliding window *lpc |
|
Frequently Asked Questions (FAQ):
Q: What are the advantages of your factory?

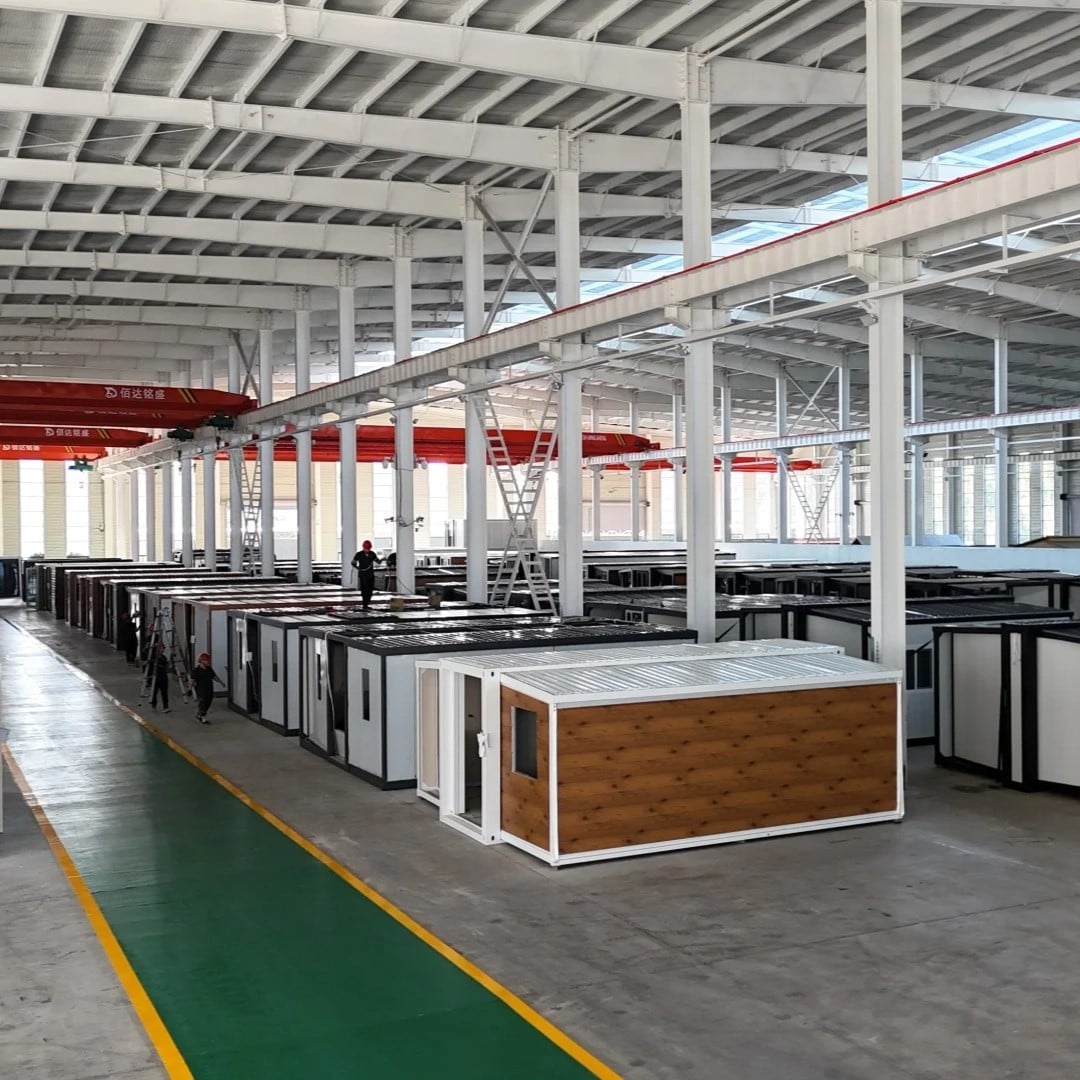

A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.
Q: What is your supply capacity?
A: 50 sets of container houses per day and 1,500 sets per month.

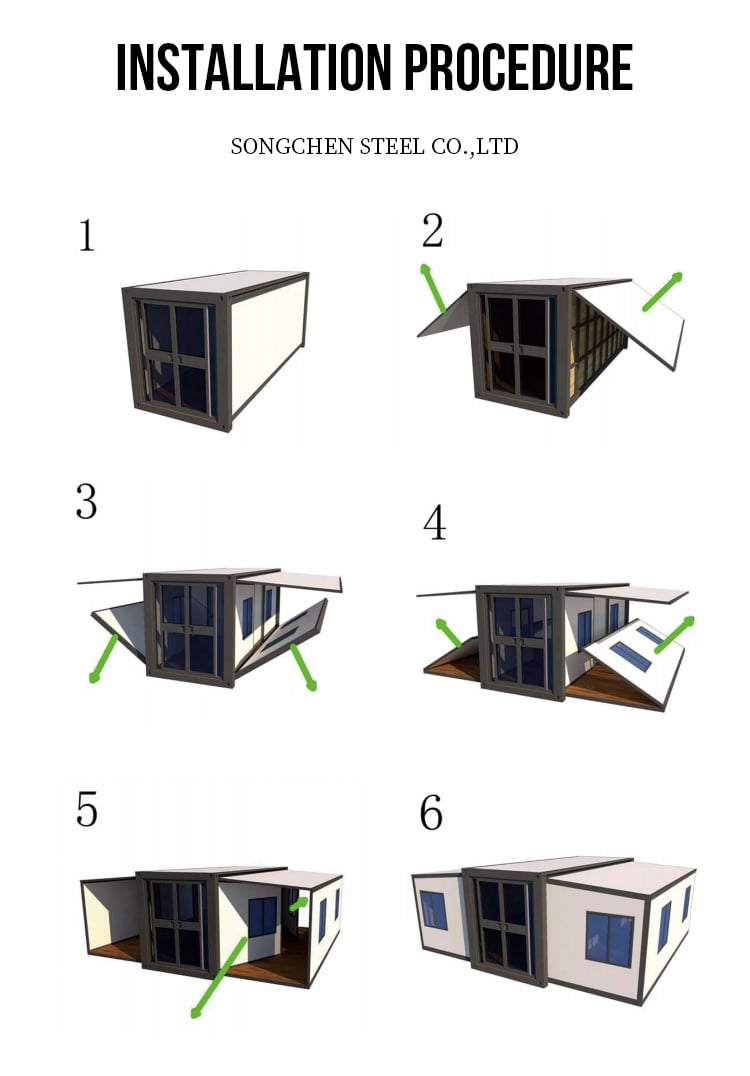

Q: How to install?
A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.
Q: How long is your delivery time?
A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.
Q: How many coutries you already exported?
A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.
