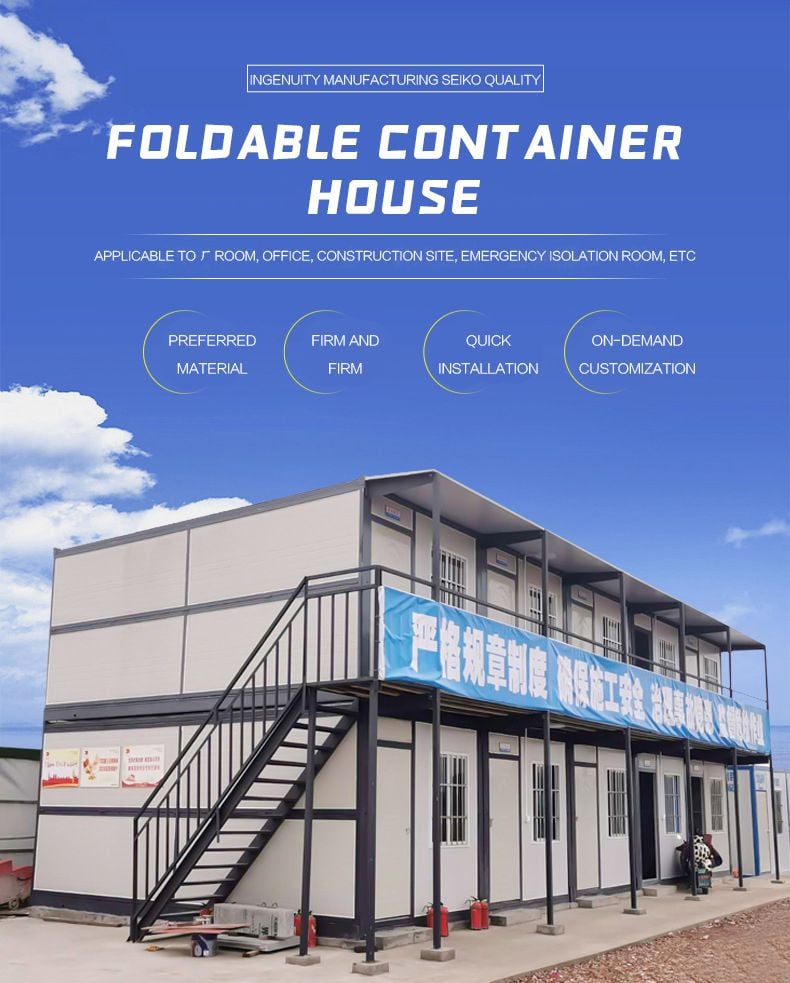

Z Type Foldable House
The folding container house is an innovative temporary or semi-permanent living and working space product manufactured through modular design and folding technology. It has significant features such as high space utilization, convenient transportation and installation, good thermal insulation performance and structural stability. It is made of high-strength materials and specially designed to be folded and unfolded quickly, meeting people's life and work needs in various scenarios.
- Overview
- Recommended Products
Product Overview: Foldable Container House
The folding container house is an innovative temporary or semi-permanent living and working space product manufactured through modular design and folding technology.
It has significant features such as high space utilization, convenient transportation and installation, good thermal insulation performance and structural stability.
It is made of high-strength materials and specially designed to be folded and unfolded quickly, meeting people's life and work needs in various scenarios.
Specifications and Parameters:
| Structural | high-quality hot-rolled Q235 galvanized steel |
| Roof | steel beam, rock wool sandwich panel, corrugated color steel ceiling |
| Wall | color-coated galvanized steel plate, foam, rock wool |
| Door and window | plastic steel, aluminum alloy or customization |
| Color | white, wood grain or customization |
| Size | 5850*2430*2540mm or customization |

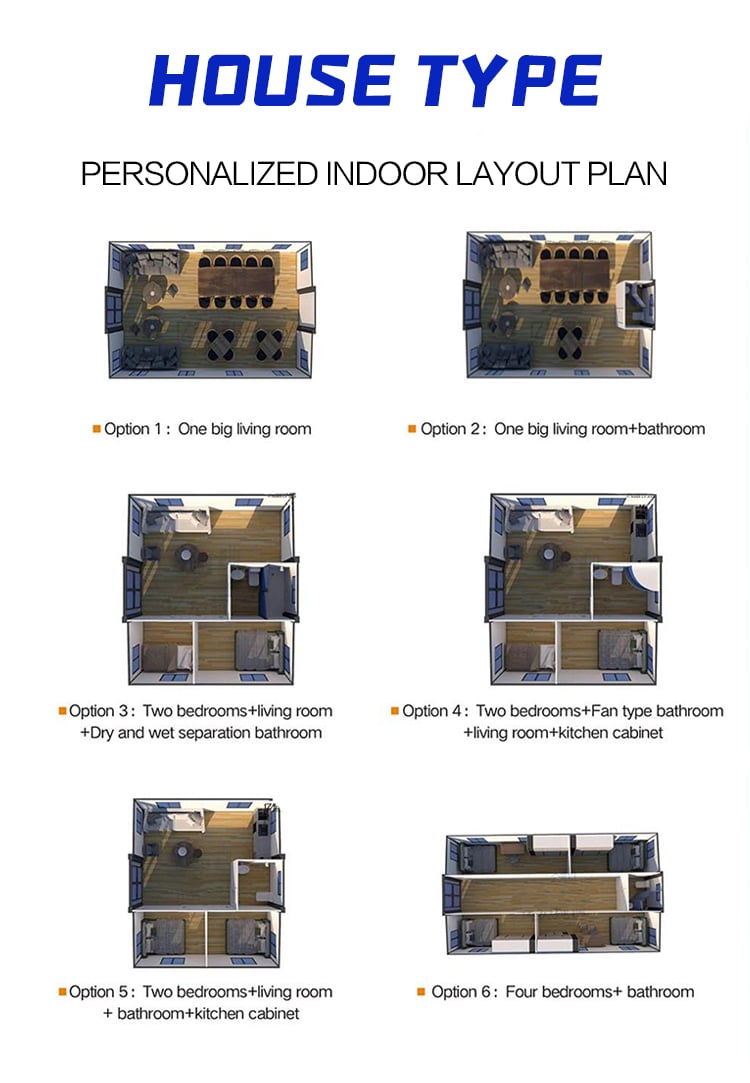

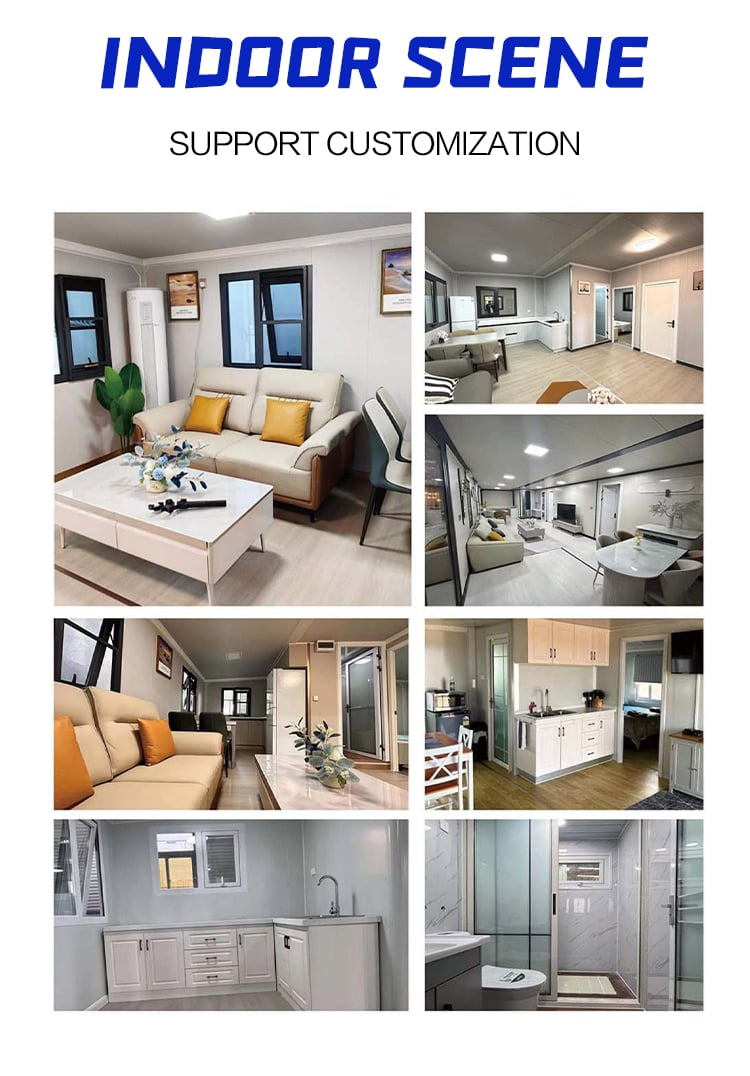

| Internal design | free design |
| Standard | strictly follow ASTM, JIS, EN, DIN, GB and other international and domestic authoritative standards |
| Product life | more than 20 years |
| Transportation | sea transportation, 8 sets/1*40hq |
Product Features:
1. Highly practical
The house has strong earthquake and wind resistance, good insulation effect, strong load-bearing capacity, can be combined and stacked for use, and the service life can reach more than 20 years.

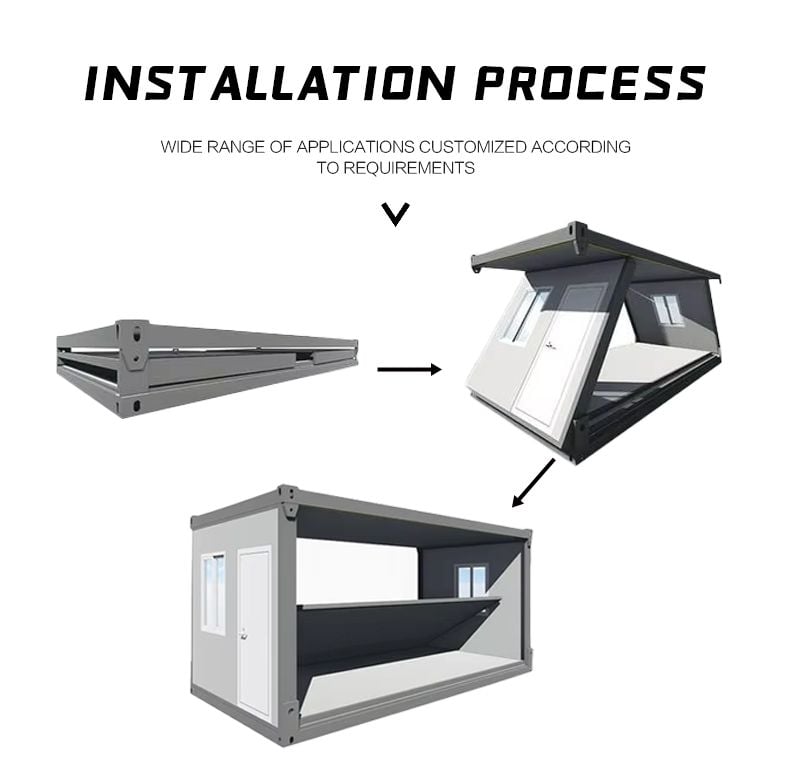

2. Fast installation and easy transportation
Whether it is integrated or split transportation, it can be easily implemented to meet the needs of rapid deployment.
3. Wide application scenarios
There are no special requirements for the site, and it can be used immediately, saving a lot of time and cost.
4. Green and environmentally friendly
No construction waste is generated, which is in line with modern environmental protection concepts.

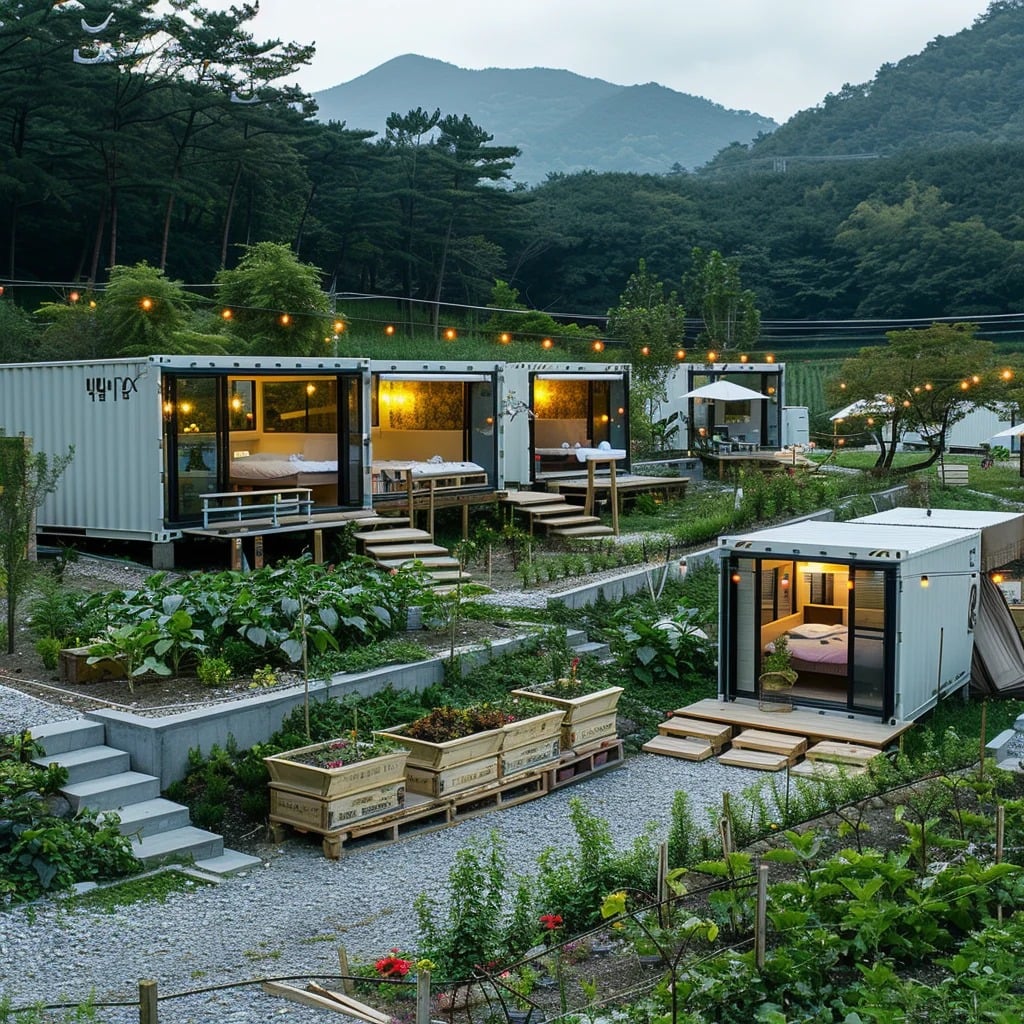

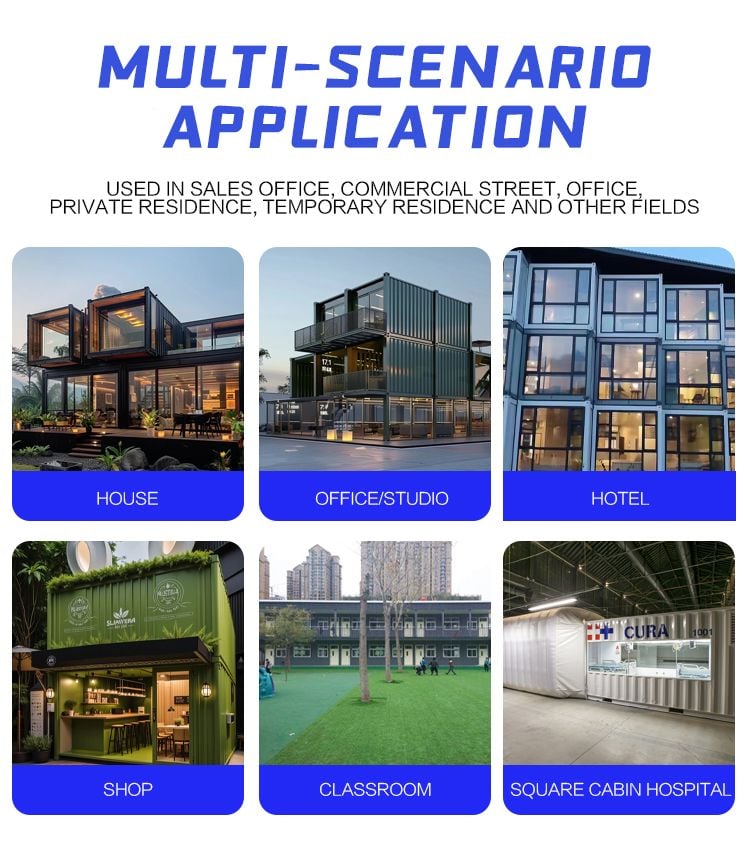

Application Scenarios:
Residence/Office/Hotel/Shop/School/Hospital/Camping/etc
| Z Type Foldable Container House | ||
| Size | Dimension(mm) | 5850*2430*2540 |
| Inner Dimensions(mm) | 5640*2290*2380 | |
| Folding Size(Packing Size)(mm) | 5850*2430*580 | |
| Weight | NetWeight (kg) | 1350kg |
| Style | Roof Design | Flat roof have 4pcs columns,internal drainage |
| Layer | 3 layers | |
| Floor load Capacity | 2.0kN/M² | |
| Rroof load Capacity | 0.5kN/M² | |
| Earthque Resistance Grade | 8 | |
| Wind Load | 0.6kN/M² | |
| Hanging Head | GI steel thick 3.0mm size 210*150*160(mm) | |
| Column/Pillar(mm) | Thick 2.5mm *2pcs reinforcement ribs | |
| Roof Main Beam | 180mm ,thick 2.5mm | |
| Roof Secondar Beam | 80mm C type steel, thick 1.2mm | |
| Roof Water-proof |
30*30*1.2mm thick square tube *1pcs, 20*20*1.2mm thick square tube *2pcs |
|
| Floor Main Beam | 160mm steel, thick 2.5mm | |
| Floor Second Beam | square steel tube size 50*100mm thick 12mm *9pcs | |
| Out Coating | White Power Electrostatic Spraying | Coating pencent above 80% |
| Roof Style | Top of Roof |
White and gray color 0.4mm thick color steel 360 degree bite, special water proof method |
| Roof Insulation | Grade A anti-fire,thick 50mm glass wool capacity 14 kg per square meter |
|
| Ceiling Board | 0.3mm thick 831 model GI with hide bolt | |
| Floor | Deceration Plate | Class A thick is 18mm cement fabric board for base board and 1.6mm PVC leather sheet |
| Flood Tank | Water slide/channel | |
| Wall | Wall Board Color |
White gray, sndwich panel 950 model, double layers of orange peel pattern, the steel plate is 3 mm thick |
| Insulation ofWall | Capacity 50kg rock wool per square meter | |
| Door&Windows |
Steel door 970*1970mm, window use double layer glass sliding type PVC steel window, mosquito screen size 930*1130mm, double layer hollow glass sizes 3+5+3mm |
|
| Electric System |
Voltage 220 V,main wire #6,air condition wire#4,socket wire #2.5,light wire #1 1 pc PVC distribution box,1 pc leakage protector,1 pc circuit break,1 pc industry socket,2 pc LED pencil ceiling light,1 pc 3-hole outlet,1 pc 5-hole outlet,1pc single switch |
|
| Parts | Whiteand gray GI Aluminium steel colorparts,3 pcs white gray color skirting line |
|
Frequently Asked Questions (FAQ):
Q: What are the advantages of your factory?
A: We not only have a container house assembly factory, but also steel raw material production factories, which does not rely on procurement and saves purchase costs of material, more competitive prices and best after-dales service than other factory.
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, third Party Inspection is also available.
Q: What is your supply capacity?
A: 50 sets of container houses per day and 1,500 sets per month.
Q: How to install?
A: Instruction manual and video will be provided or online technical support installation instructions, to ensure that customers can complete the installation quickly and well.
Q: How long is your delivery time?
A: It depends on the order quantity and delivery destination, Please consult customer service to define specific time.
Q: How many coutries you already exported?
A: Exported to more than 50 countries mainly from North America, South America, Southeast Asia, Middle East, Africa, etc.
